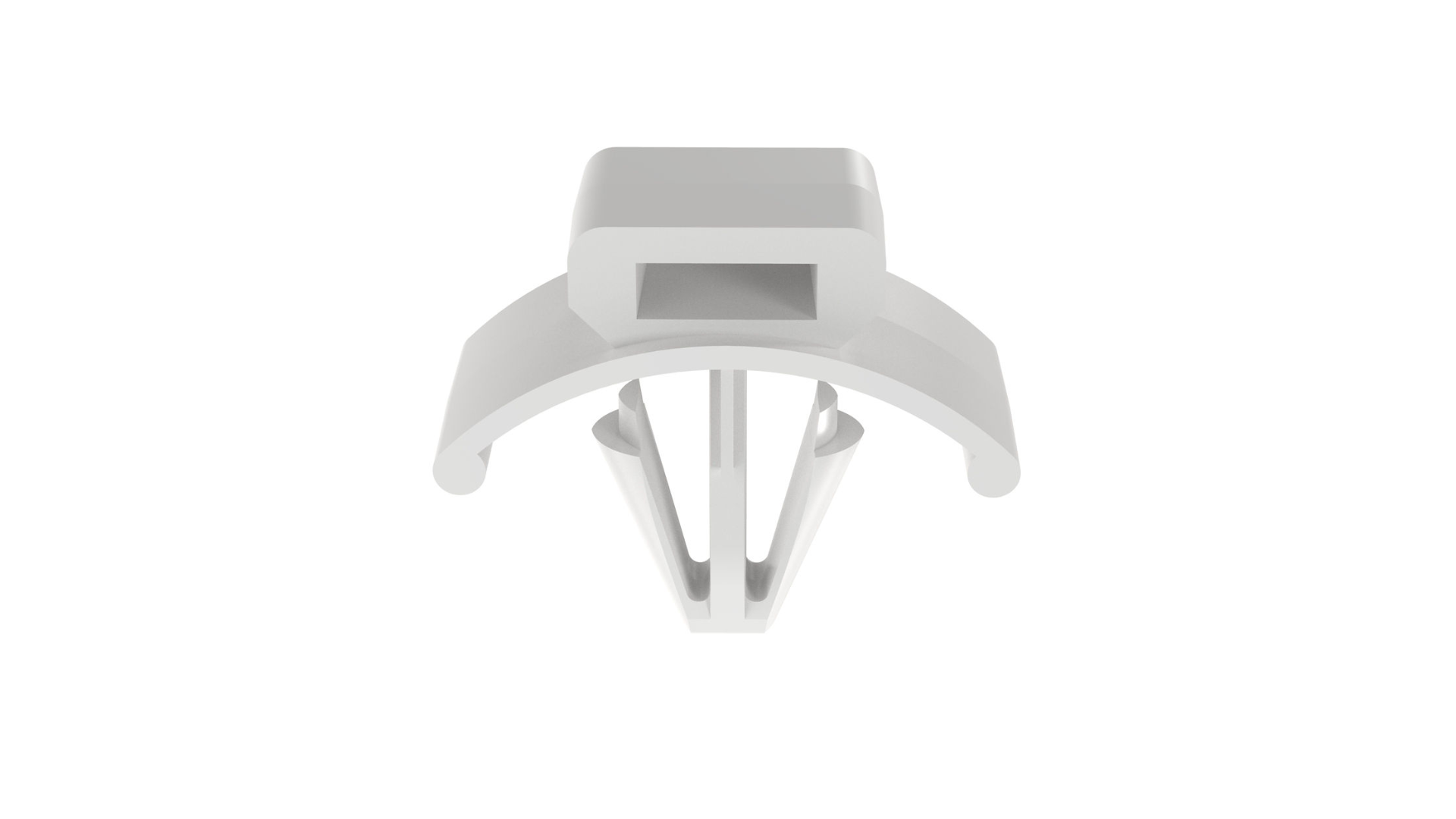

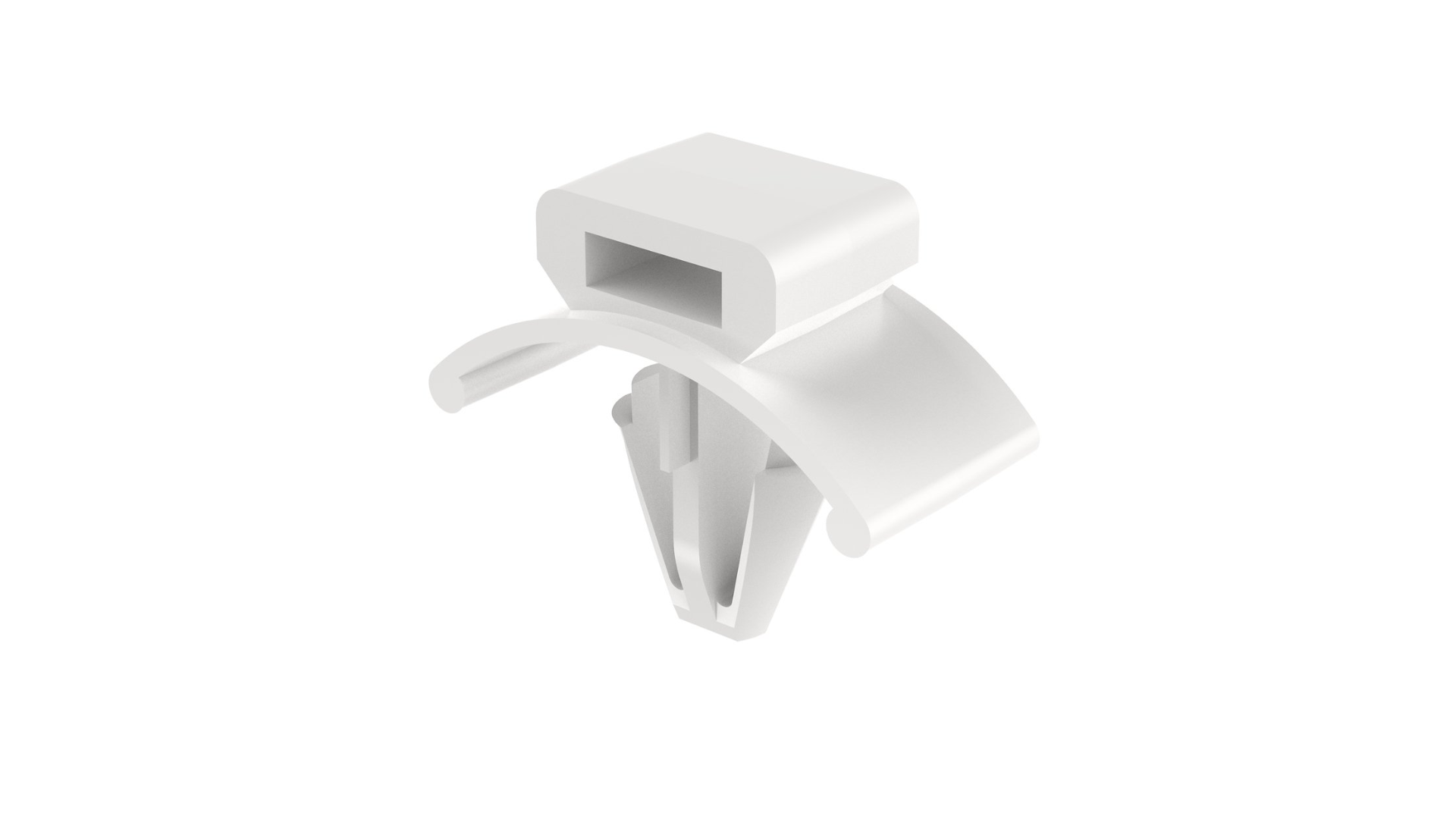

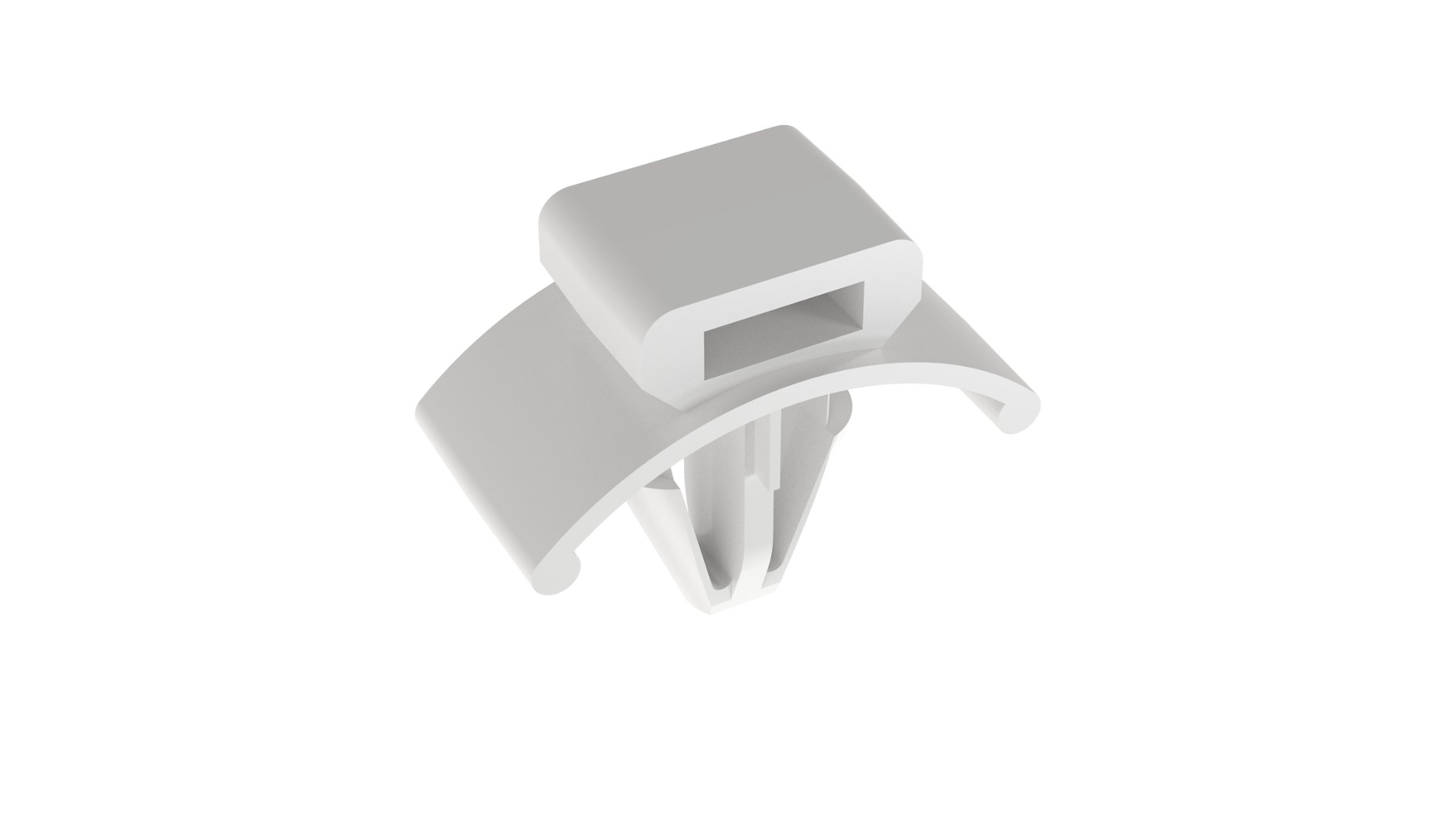

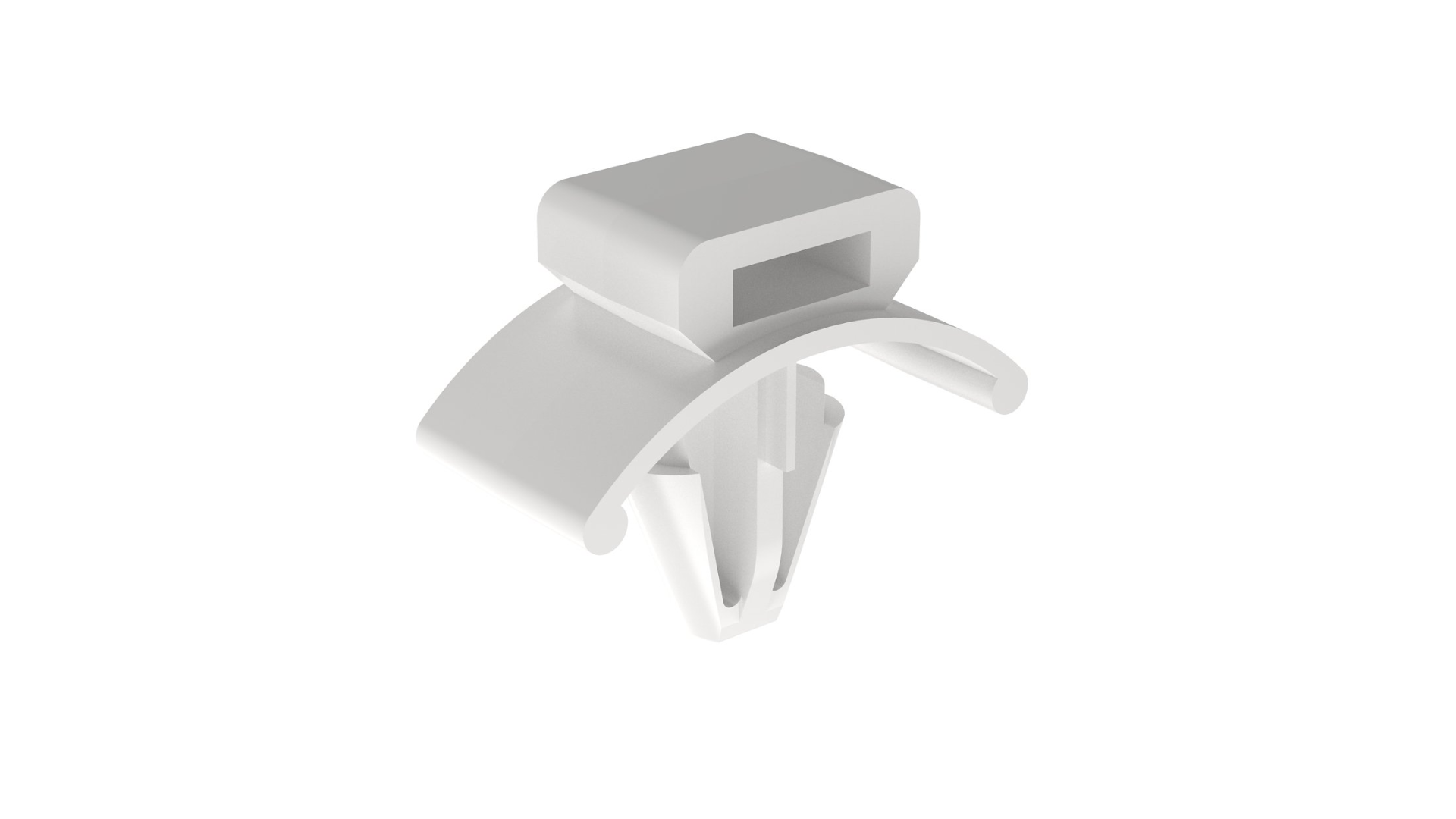

Panduit PWMS-H25-C Winged Push Barb Cable Tie Mount, Natural, 0.75" Length, Nylon 6.6, 100/Bag

Part Number: PWMS-H25-C

Package Quantity: 100

Specifications:

• Length: 0.75"
• Width: 0.37"
• Height: 0.61"–0.62"
• Mounting Hole Diameter: 0.25"
• Material: Nylon 6.6
• Color: Natural
• Mounting Type: Push barb (arrowhead/winged for secure retention)

Description:

The Panduit PWMS-H25-C is a winged push barb cable tie mount designed for quick and secure installation into a pre-drilled 0.25" (6.4 mm–6.5 mm) hole. The winged push barb design provides strong retention and easy insertion, while the nylon 6.6 construction offers excellent mechanical strength, heat resistance, wear resistance, and stiffness. It accommodates miniature, intermediate, and standard cross-section Pan-Ty® cable ties for bundling and routing wires or cables. Ideal for indoor environments requiring reliable, low-profile mounting without adhesives or screws. The natural color blends with typical applications, and it's suitable for general-purpose wire management.

Applications:

• Cable and wire routing/organization
• Structured cabling systems
• Electrical panel and control box installations
• Networking and data center wiring management
• Indoor applications in machinery, enclosures, racks, and harness assemblies where quick push-mount installation is preferred
